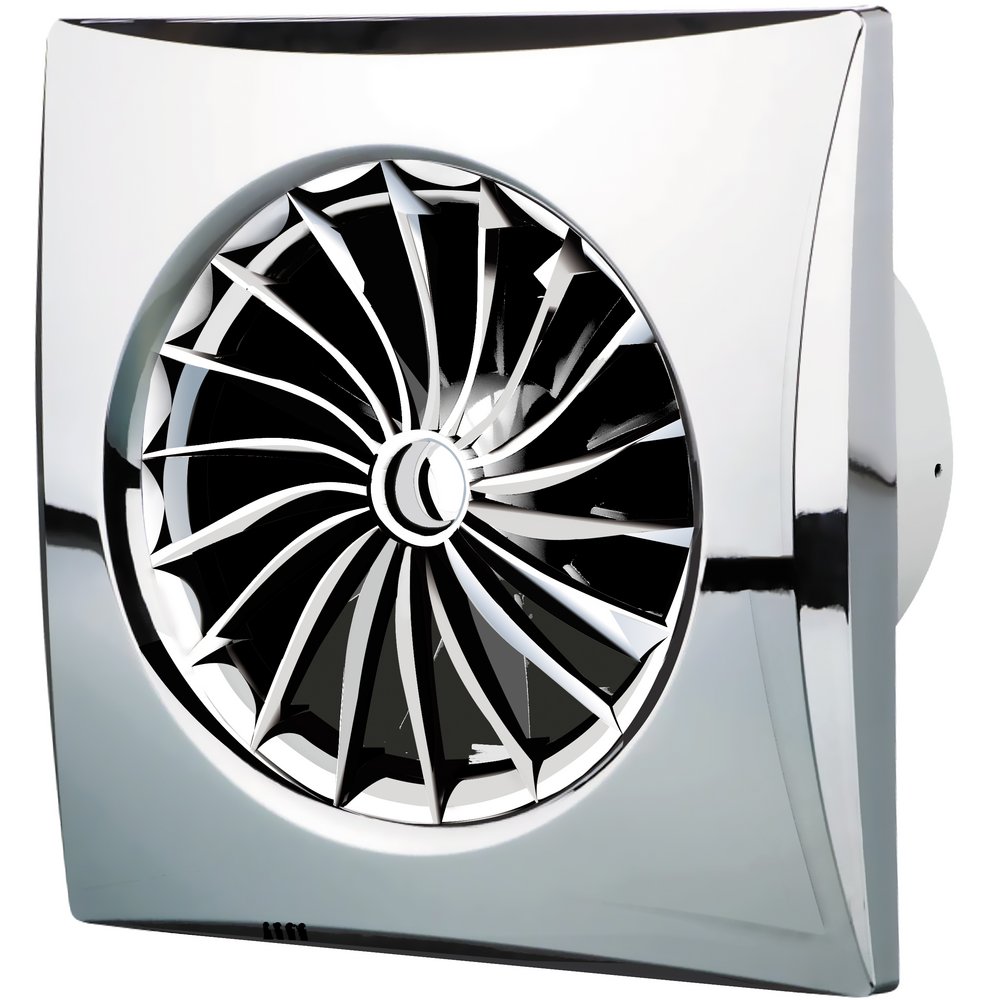

Zone 1 Extractor Fan with Timer, 100mm, 97m³/h, 25dB, Chrome
Zone 1 Extractor Fan with Timer, 100mm, 97m³/h, 25dB, Chrome
Part Code:
OSEF100C-Z1T
Stock Availability
FREE delivery over £50 ex. VAT
Product Details
Part Code:
OSEF100C-Z1T
- Specially designed mixed-flow impeller profile ensures high air flow and low noise level
- Casing and impeller made of quality durable UV-resistant plastic
- Backdraft damper for back flow prevention. Protection rating of IP45 and rated for installation in bathroom zones 1 & 2
- Ideal solution for the ventilation of bathrooms and shower rooms
- Low energy demand from 7.5W due to a new high-efficient motor
- The motor is mounted on special anti-vibration dampers
- The exhaust pipe incorporates a specially designed air rectifier to reduce the air turbulence, increase pressure and lower the noise level
Downloads
Specifications
| Colour | Chrome |
| Depth | 107mm |
| EAN | 4055426002653 |
| Extraction Rate | 97m³/hr |
| Height | 158mm |
| Manufacturer Part Code | OSEF100C-Z1T |
| Noise Level | 25dB |
| Width | 158mm |
| Ducting Size | 100mm / 4" |
