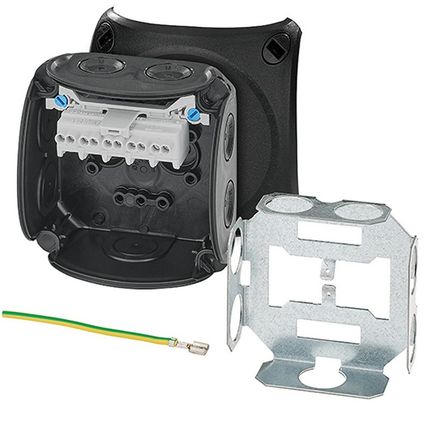

Junction Box with PE Inlay, 93mm x 93mm x 62mm, Polypropylene, Black, IP66
Junction Box with PE Inlay, 93mm x 93mm x 62mm, Polypropylene, Black, IP66
Part Code:
DK0202V
Stock Availability
FREE delivery over £50 ex. VAT
Product Details
Part Code:
DK0202V
- 0.75mm²-2.5 mm²
- Terminal with 2 clamping units per pole
- Patented PE inlay to connect the armours of SWA cables
- Integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6mm-15mm
- Lid fasteners sealable without accessories
- Retaining strap and external brackets for wall fixing included
Downloads
Specifications
| Colour | Black |
| Current Rating | 20A |
| Depth | 62mm |
| EAN | 4012591135111 |
| Height | 93mm |
| IP Rating | IP66 |
| Manufacturer Part Code | DK0202V |
| Width | 93mm |
