Hikmicro

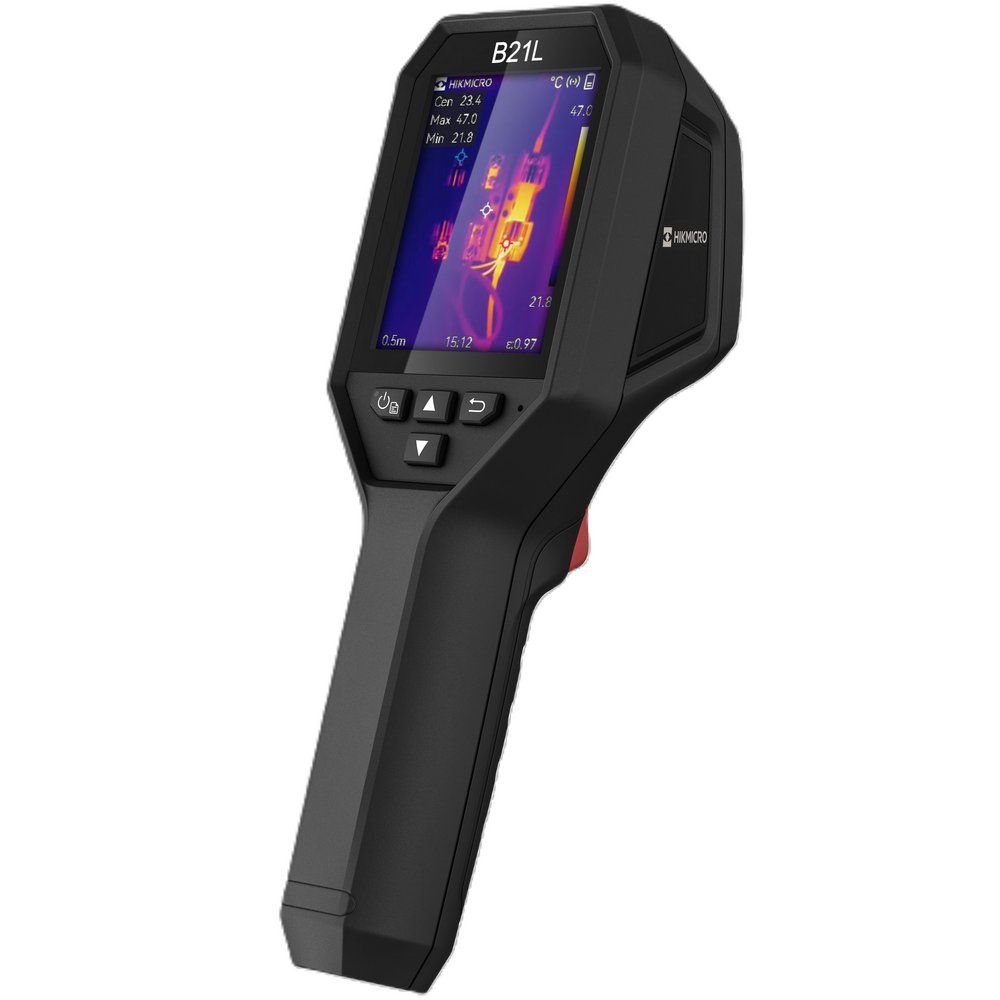

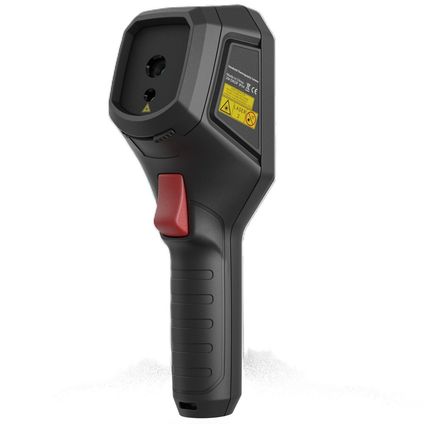

Handheld Thermal Camera, 3.2" LCD, 256 x 192, -20°C to 550°C, IP54, B Series

Hikmicro

Handheld Thermal Camera, 3.2" LCD, 256 x 192, -20°C to 550°C, IP54, B Series

Part Code: HM-TP52-3AQF/W-B21L

Stock Availability
Please contact your local store for details
FREE delivery over £50 ex. VAT
Product Details
Part Code: HM-TP52-3AQF/W-B21L
  • Thermal resolution: 256 x 192 (49,152 pixels)
  • NETD: <40mK (@ 25°C,F#=1.0)
  • Temperature measurement range : -20°C to 550°C (-4°F to 1022°F)
  • Accuracy: Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
  • Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
  • 25Hz image frequency
  • 3.2'' LCD screen display
  • Up to 6 hours continuous running

The B21L is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 high-resolution thermal detector, giving you enhanced details for your inspection. The thermography ranges from -20°C to 550°C (-4°F to 1022°F), which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.

Specifications
Depth 123.8mm
Height 221.7mm
IP Rating IP54
Manufacturer Part Code HM-TP52-3AQF/W-B21L
Width 73.5mm
