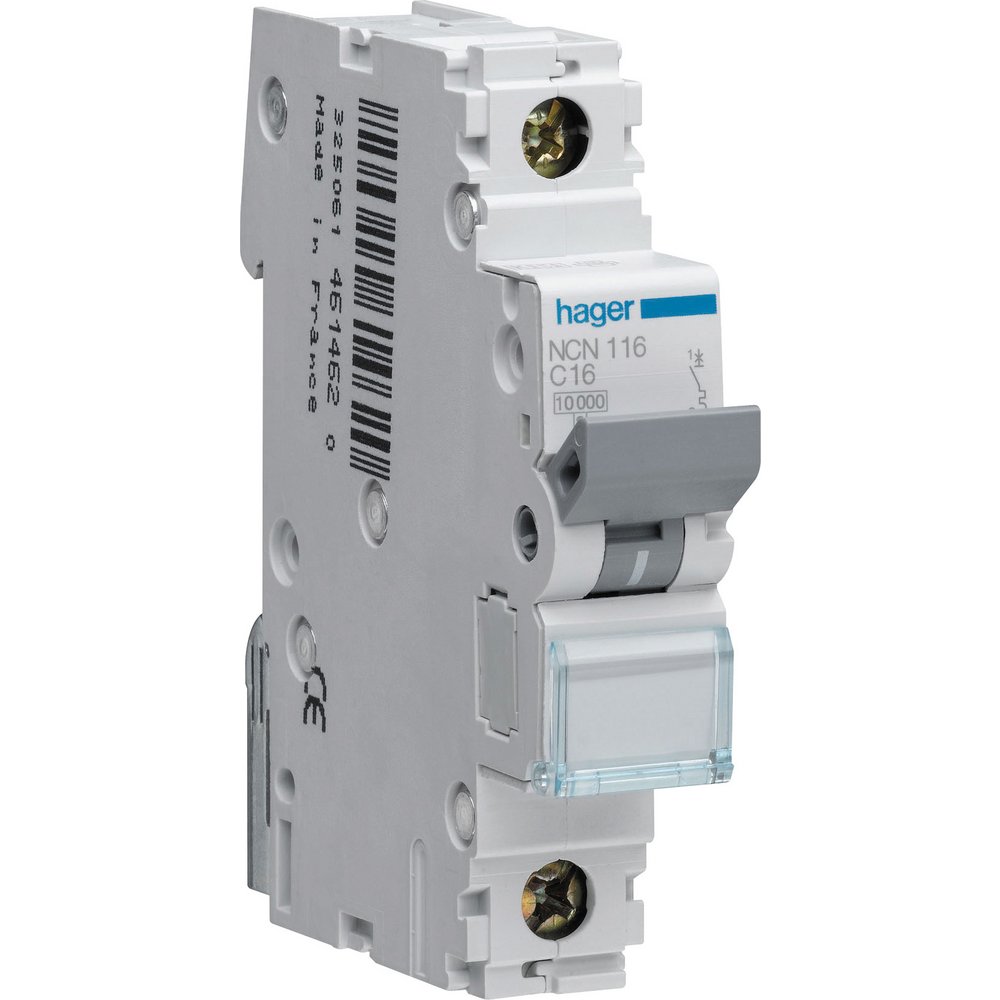

16A Single Pole 10kA MCB - Type C
16A Single Pole 10kA MCB - Type C
Part Code:
NCN116A
Stock Availability
FREE delivery over £50 ex. VAT
Product Details
Part Code:
NCN116A
- Provides protection against short circuits, protection against overload current, control, isolation, trip free mechanism
- The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour
- Connection capacity: 25mm² flexible conductor, 35mm² rigid conductor
- Conforms to: BS EN 60898-2 (10kA), BS EN 60947-2 (15kA)
Downloads
Specifications
| Breaking Capacity | 15kA |
| Current Rating | 16A |
| Curve Type | Type C |
| EAN | 3250614615528 |
| EClass Code | 27-07 |
| Manufacturer Part Code | NCN116A |
| Mounting Type | DIN Rail |
| Number of Poles | 1 Pole |
| Product Range | NCN Series |
| Rated Voltage | 230V, 400V |
| UNSPSC Code | 39121603 |
